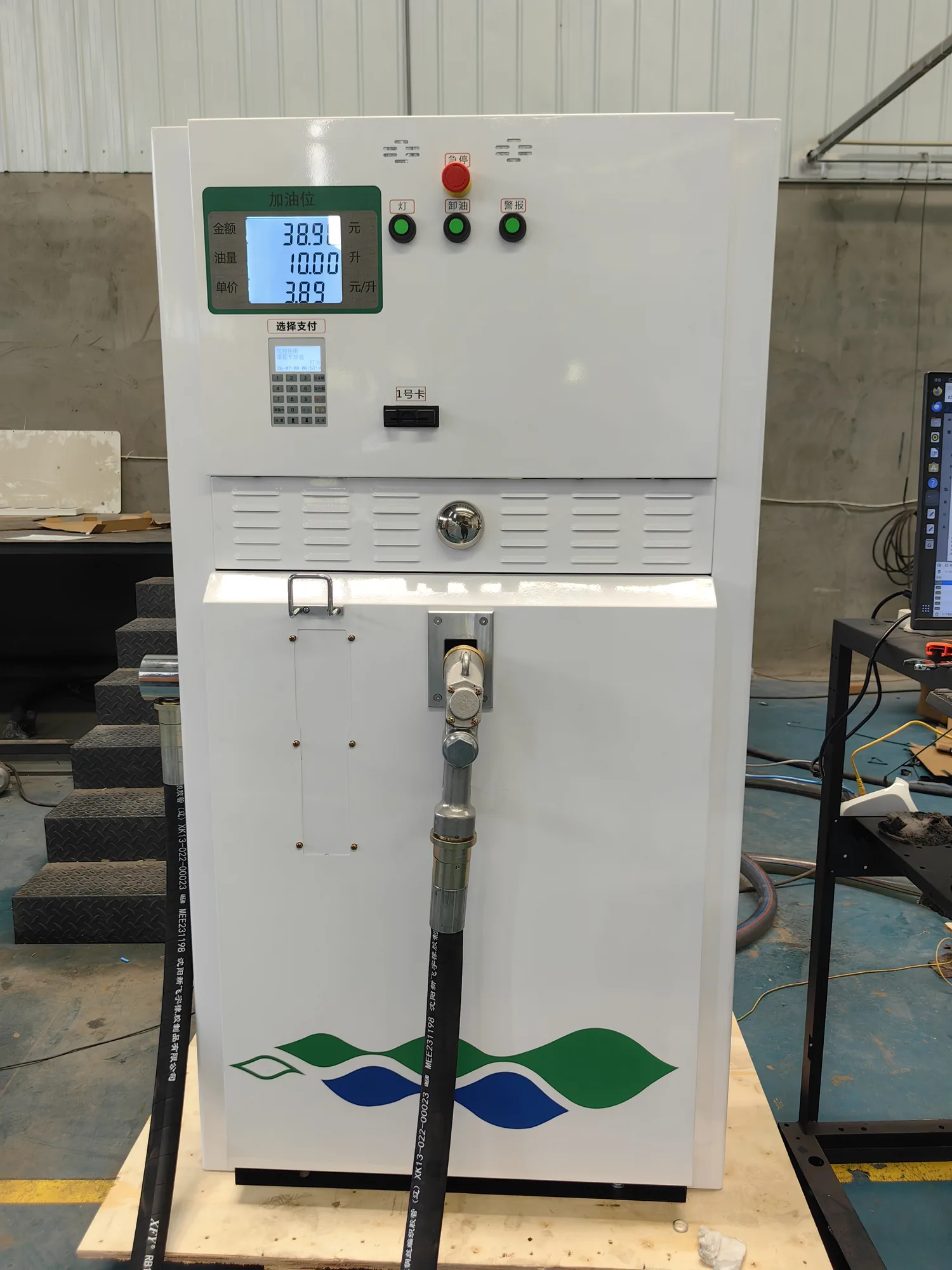

150L High-Flow · Skid-Mounted Dispenser
Mega Flow 150L/min · Engineered for Peak Refueling Scenarios
The 150L High-Flow edition is an upgraded version of Zhiming Energy's skid-mounted series, engineered for bus depots, large logistics fleets, mining heavy equipment, and construction vehicles with peak refueling demand. Flow rate boosted to 150 L/min (3-4x standard models), combined with high-flow nozzles, dedicated piping, and industrial-grade flow meters — enabling large vehicles to complete 300-400L refueling in just 2-3 minutes, dramatically improving fleet turnaround.
Note: Technical specs are reference values. Final specifications subject to official product datasheet.
Core Features
Flow
150 L/min mega flow rate, 3-4x standard models. Buses and heavy trucks complete 300-400L refueling in 2-3 minutes, dramatically improving fleet turnaround.
Piping
High-flow dedicated hoses + enlarged valves + industrial-grade flow meters, with piping and sealing structures redesigned for 150L sustained full-load operation.
Integrated
Refueling, storage, and safety protection in one skid structure. No civil works required, crane-lifted and ready for operation, flexible mobility.
Fire-Ret.
Full machine Ex-proof certified Ex d IIA T3, GC2 pressure piping certification, meeting refueling safety standards for bus depots, logistics parks, and mining sites.
Technical Specifications
| Parameter | Value |
|---|---|
| Applicable Fuel | 92# / 95# Gasoline / 0# Diesel (-10#, -20# Diesel optional) |
| Flow Range | 40—150 L/min (High-Flow Edition) |
| Nozzle Count | 2 nozzles (Single 150L, Parallel 75L×2) |
| Measurement Accuracy | ±0.25% |
| Working Pressure | 0.2—0.6 MPa |
| Display Screen | 10.1" LCD Touchscreen |
| Communication | 4G / Wi-Fi / RS485 / CAN Bus |
| Payment Methods | IC Card / QR Payment (WeChat / Alipay) / License Plate Recognition |
| Power Supply | AC 380V, 50Hz (Three-Phase Four-Wire) |
| Working Temperature | -25℃ ~ +55℃ |
| Protection Level | IP55 |
| Ex-Proof Rating | Ex d IIA T3 (Cert No.: TBD) |
| Pressure Piping | GC2 Industrial Piping (Cert TBD) |
| Flow Measurement Type Approval | Extension application in progress (subject to final certificate) |
| Tank Capacity | 5—50 m³ skid-integrated (optional) |
| Cloud Platform | Zhiming Energy Cloud Platform (Pro version, supports fleet management API) |
Application Scenarios
Bus Depots
City buses and long-distance coach stations. 150L mega flow enables large buses to complete 300L refueling in 2-3 minutes. Multi-vehicle parallel refueling without queuing, improving first/last bus turnaround.
Large Logistics Fleets
Logistics parks, cold-chain fleets, hazardous materials transport. Closed-loop management + mega flow, reducing per-vehicle refueling time by 60-70%, significantly lowering operating costs.
Mining Heavy Equipment
Mining sites, oilfield operations. Mining trucks, excavators, loaders and other large equipment. 150L flow meets continuous multi-vehicle operation demand, with integrated storage and explosion-proof design.
Construction / Mixing Plants
Large construction sites, highway projects, concrete mixing plants. Heavy trucks and cranes in continuous operation, skid-mounted plug-and-play, flexible relocation.
Airport Ground Support
Airport ground support vehicles, baggage tugs, shuttle buses. Dedicated mega flow meets high-frequency, uninterrupted internal airport refueling demands.
Ports & Terminals
Port container trucks, terminal tractors, reach stackers. 150L flow meets 24/7 port operation requirements, anti-corrosion design adapted to high-salt marine environment.
150L High-Flow vs Standard
| Feature | Standard | 150L High-Flow |
|---|---|---|
| Flow Range | 5—40 L/min | 40—150 L/min (3-4x) |
| 300L Refueling Time | Approx 8-10 minutes | Approx 2-3 minutes |
| Nozzle Spec | Standard flow nozzle | High-flow dedicated nozzle |
| Working Pressure | 0.2—0.4 MPa | 0.2—0.6 MPa |
| Power Supply | AC 220V single-phase | AC 380V three-phase |
| Flow Meter Accuracy | ±0.30% | ±0.25% |
| Application | Standard small-scale stations | Bus / Logistics / Mining peak scenarios |
