Zhijian
Zhichang
Zhiang
Skid
Smart Fuel Dispenser · Four Series
Zhijian / Zhichang / Zhiang / Skid-Mounted — covering all scenarios of smart refueling terminals, from small stations to large chains, from fixed sites to mobile skid-mounted.
Core pumps and flow meters from industry-leading brands · 72-hour durability testing · National explosion-proof certification
Four Series · At a Glance
Different fuel types, flow rates, and configurations to match different station scales and scenarios.

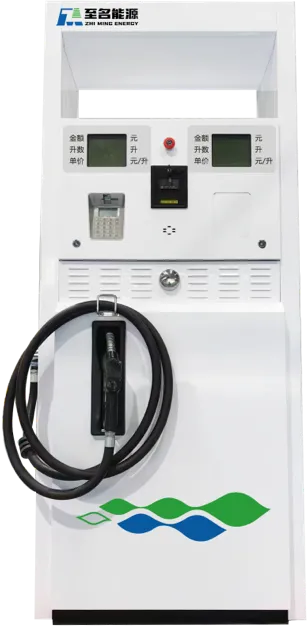

Zhijian Series
IoT smart choice for small fuel stations
- Flow40-50 L/min
- Use CaseCounty / Small Stations

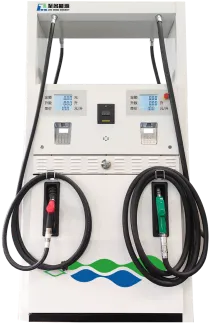

Zhichang Series
High-efficiency engine for medium-to-large stations
- Flow50-60 L/min
- Use CaseCity / Highway Stations

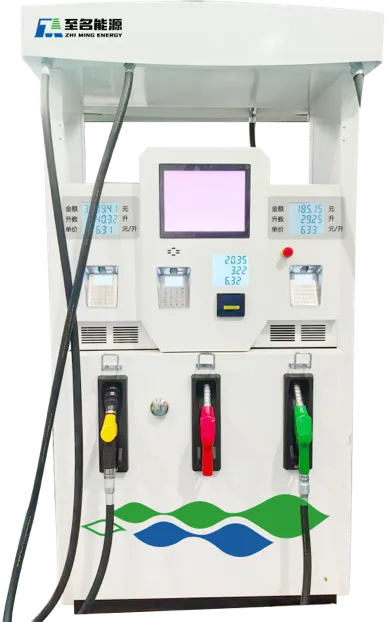

Zhiang Series
Premium smart solution for large chain stations
- Flow60+ L/min
- Use CaseChain / Group Stations
Skid-Mounted Series
Flexible and convenient mobile refueling solution
- FormIntegrated Skid
- Use CaseConstruction / Mining / Logistics Parks
Skid-Mounted · 150L High-Flow
Mega Flow · Engineered for Peak Refueling
- Flow40—150 L/min
- Refueling300L / 2-3 min
Specification Comparison · At a Glance
Compare the core parameters of the four series side-by-side to quickly identify the right model for your needs.
| Parameter | 01Zhijian Series | 02Zhichang Series | 03Zhiang Series | 04Skid-Mounted Series |
|---|---|---|---|---|
| Target Use Case | County / Small Stations | City / Highway Stations | Chain / Group Stations | Construction / Mining / Logistics Parks |
| Nozzles | 1-2 Nozzles | 2-4 Nozzles | 4-8 Nozzles | 2-4 Nozzles |
| Fuel Support | Gasoline / Diesel / Kerosene | Gas / Diesel Multi-Fuel | All Fuels + Custom | Gas / Diesel / Kerosene |
| Flow Rate / Nozzle | 40-50 L/min | 50-60 L/min | 60+ L/min | 50 L/min |
| Display | Single-side LCD | Dual-side LCD | Dual-side LCD + Touchscreen | Single-side LCD |
| Payment | Cash / Fuel Card | Cash / Fuel Card / QR Code | Cash / Fuel Card / QR Code / Face Recognition | Cash / Fuel Card |
| Remote Monitoring | ✓ Optional | ✓ Standard | ✓ Standard + Cloud | ✓ Standard |
| IoT | 4G Optional | 4G + IoT SIM | 5G + Multi-Link Backup | 4G + IoT SIM |
| Explosion-proof | Flameproof + Intrinsic Safety | Flameproof + Intrinsic Safety | Flameproof + Intrinsic Safety + Increased Safety | Fully Explosion-Proof Skid |
| Deployment | On-site Installation | On-site Installation | On-site Installation + Commissioning | Factory-Prefab, Plug & Play |
| Recommended Station Size | ≤ 4 Nozzle Bays | 4-8 Nozzle Bays | ≥ 8 Nozzle Bays / Chains | Temporary / Mobile |
Six Core Strengths · Industrial-Grade Standards
From core components to factory shipment, every Zhiming dispenser adheres to the strictest industrial standards.
Top-tier Core Components
Flow meters, solenoid valves, metering pumps and other core components are sourced from industry-leading brands, ensuring high precision and long service life.
Full-Machine Explosion-Proof Certification
Flameproof + Intrinsic Safety + Increased Safety multi-layer explosion-proof design, compliant with GB 3836 national explosion-proof standards, suitable for Zone 1 / Zone 2.
72-Hour Endurance Test
Every unit undergoes a 72-hour continuous full-load operation test before shipment, ensuring stability and reliability.
Smart IoT Management
4G/5G + IoT SIM dual-link, remote monitoring, remote upgrade, remote diagnostics—zero on-site visits required for O&M.
Multi-Payment Support
Cash / Fuel Card / QR Code / Face Recognition, freely combined to fit the payment habits of any station.
Nationwide Factory Service
30+ provincial service outlets to provide professional on-site technical service + real-time online support at first notice.
Application Scenarios · Choose by Need
Different station scenarios have different best practices. Zhiming's four series cover everything from urban stations to remote worksites.
County-Level Stations
County / small stations seeking high cost-effectiveness and stable operation, no need for complex payment features.
City / Highway Stations
Core stations in cities and highway service areas—high flow + multi-payment, 200+ vehicles per day.
Chain / Group Stations
Sinopec / PetroChina / private chain brands—multi-site unified cloud control + member marketing.
Construction / Mining Sites
Temporary refueling for engineering and mining vehicles—integrated skid, plug-and-play, lift-and-relocate as needed.
Logistics Parks
Logistics fleets / in-port refueling—explosion-proof skid + remote monitoring, replacing external refueling.
Marine / Dock Refueling
Port / marine refueling points—multi-fuel + high flow, ideal for ship refueling operations.
4-Step Selection · Easy and Efficient
From needs communication to solution delivery—every step is professional, transparent, and traceable.
Needs Communication
Tell us your station scale, fuel type, daily refueling volume, and any special requirements (explosion-proof / skid-mounted).
Solution Matching
Our technical team matches the most suitable series to your needs, providing selection advice + configuration list + budget quote.
Production & Delivery
Factory prefabrication + full-machine type testing + packaging & shipping. Skid-mounted series can be lifted directly to the site for plug-and-play installation.
Commissioning + Service
On-site commissioning + operation training + 7x24 remote O&M support + scheduled inspections + spare parts supply.
Need a Selection Recommendation?
Tell us your station scale and requirements to get a tailored product solution and quote.
